Hydraulic Dock Leveler
Introduction:
A Dock Leveler bridges the gap between a docked vehicle and the loading bay to ensure smooth and safe loading and unloading.
A leveler enables the easy transition of goods between a loading bay and a docked vehicle, keeping stock and staff protected from damage and injury. And they are designed to withstand the bumps and shocks of the daily loading process, so you can be confident that they have a long lifetime. From manual dock plates to automatic dock levelers, you can tailor your solution to fit your facility.
Technical Specifications:
| Structure | Base & Top Table Structure Will Made from M.S., C Channel Section. |
| Weight Capacity | 6 Ton, 10 Ton, 12 Ton & 15 Ton |
| Platform Size | 2500 X 2000 MM (Standard) Customization also possible. |
| Movement | 2500 X 2000 MM (Standard) Customization also possible. |
| Loading Of Material | Manual |
| Electric Motor | 1-2 H.P., 3 Phase (Depends on the Weight Capacity) |
| Cylinders | 2 +1, Double acting type cylinder (2 No. main cylinder ,1 no. Lip Cylinder) |
| Speed | 4-5 mtr/ min. |
DOCK LEVER
Safety Features
- Minimum and maximum height control by limit switch.
- Emergency Push button.
- The lift will keep alarming or beep, when it is moving up and down.
- Overload Safety Relay.
- Pressure Relief valves in all hydraulic cylinders for safety.
Hand Pallet Trucks (HPTs)
Description:
Battery-operated pallet trucks for effortless material movement and improved productivity.
Specifications:
- Capacity: 5 – 2.0 Ton
- Drive: Electric with AC Motor
- Battery: 24V Maintenance-free / Lithium option
- Travel Speed: Up to 6 km/h
- Ergonomics: Easy-to-use tiller with safety switch

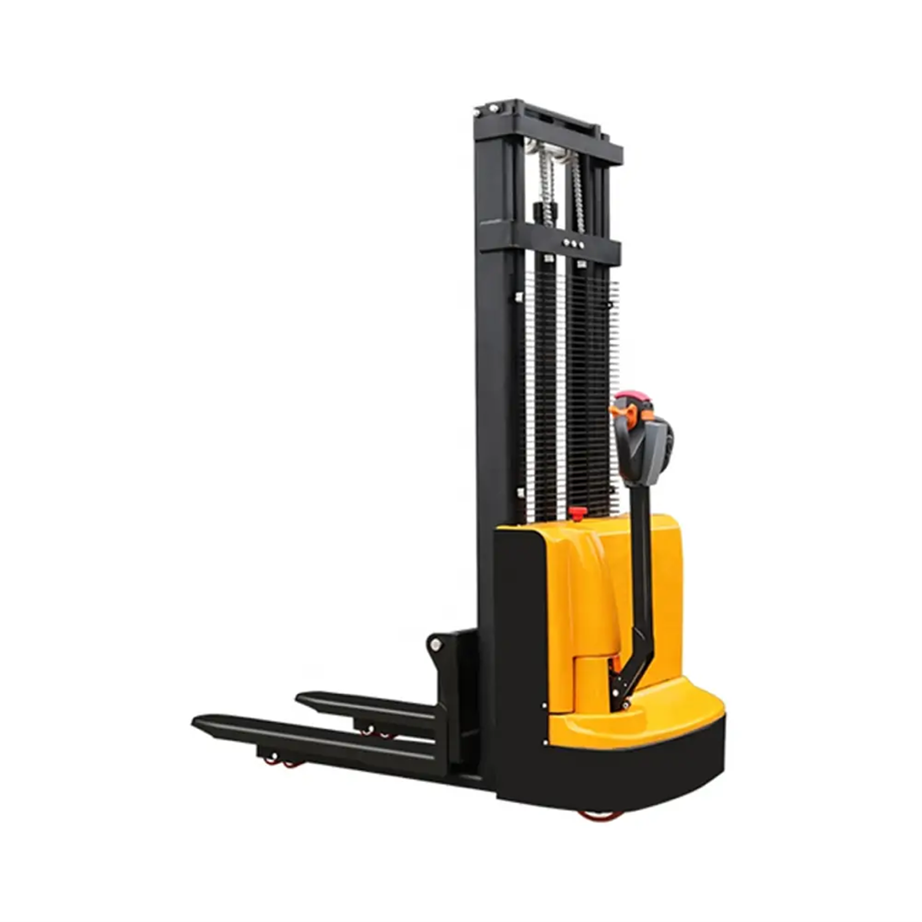

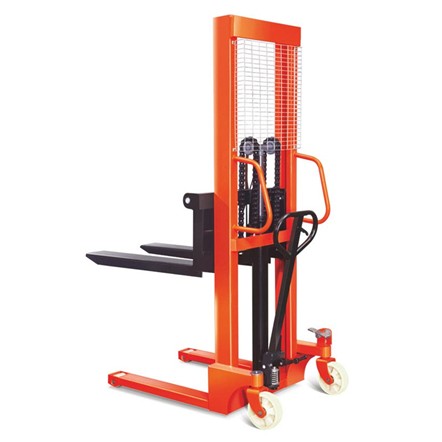

Electric & Manual Stackers
Description:
Powered stackers for lifting heavy loads with minimal effort, ideal for racking applications & Compact manual stackers for lifting and stacking pallets up to moderate heights.
Specifications:
- Capacity:0 – 2.0 Ton
- Lift Height: Up to 3.0 m
- Operation: Hydraulic hand pump/Electric motor with smooth control
- Mast: Single / Double mast options
- Wheels: Nylon or PU castors/ with brakes and emergency stop in Electric option
