MS Formwork Solutions — Precision | Strength | Reliability

screenshot 2025 10 03 150703.png

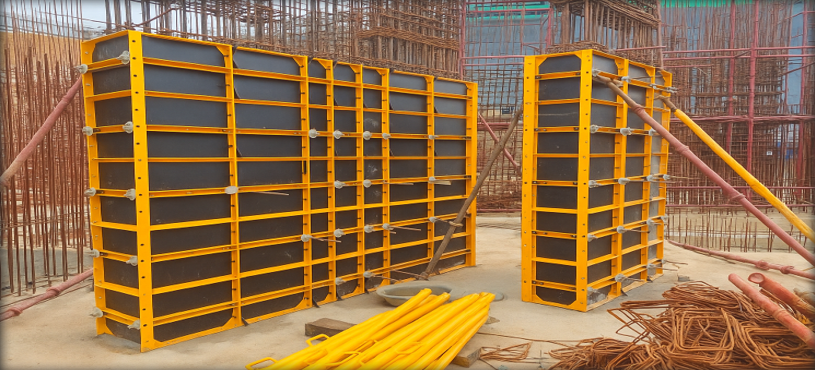

1. MS Panel Formwork (Modular)

Overview: Modular steel panels designed for flexibility, easy assembly, and durability.

Features:

  • High-strength MS frames with steel facing plates.
  • Standard and customized panel sizes available.
  • Quick-lock clamps and connectors for faster erection.
  • High load-bearing capacity and reusability over many cycles.

Technical Specifications:

  • Panel sizes: 600 × 2400 mm, 900 × 2400 mm, 1200 × 2400 mm (custom on request).
  • Facing plate thickness: 3–4 mm MS plate.
  • Frame: 50 × 50 × 5 mm MS angle or RHS sections.
  • Load capacity: up to 60–75 kN/m².
  • Average reuse cycles: 50–80 (with proper maintenance).

Applications: Walls, columns, slabs, beams in residential and commercial projects.

2. Heavy-Duty MS Formwork

Overview: Thick plate steel formwork system for repetitive and high-load applications.

Features:

  • Fabricated using structural MS with 3–6 mm facing plates.
  • Precision-welded frames to ensure rigidity and alignment.
  • Suitable for large pours, infrastructure projects, and long-term
  • Accessories include walers, tie rods, spreaders, and alignment

Technical Specifications:

  • Facing plate thickness: 5–6 mm MS plate.
  • Frame: Heavy-duty box/RHS profiles (75 × 50 × 5 mm or higher).
  • Load capacity: up to 90–100 kN/m².
  • Typical reuse cycles: 100+ cycles with maintenance.
  • Panel height: up to 3.0 m (extendable with couplers).

Applications: Bridge piers, tunnels, retaining walls, and high-rise structures.

3. Customized MS Formwork

Overview: Tailor-made MS formwork designed to suit complex geometries and unique project needs.

Features:

  • Custom design based on project drawings (DWG/PDF).
  • Options for curved, angled, or irregular concrete shapes.
  • Robust and reusable design ensuring accuracy in casting.
  • Enhanced finishing and dimensional stability.

Technical Specifications:

  • Plate thickness: 4–8 mm MS plate (as per design).
  • Frame: Custom profiles based on load analysis.
  • Load capacity: engineered as per structural requirements (typically 60–100 kN/m²).
  • Custom cycles: 50–120 depending on complexity and maintenance.

Applications: Special structures, architectural elements, and custom concrete shapes.

Accessories for MS Formwork

  • Tie Rods & Nuts— High-strength steel rods with wing nuts and cones.
  • Walers & Beams— Distribute loads evenly across panels.
  • Props & Shores— Adjustable MS props for vertical support.
  • Clamps & Couplers— Strong and quick locking systems.
